Article Index

Web Interface

The software contained Embedded devices has two parts, the operating system that runs 'unknown' to the user and the user accessible interface, which can either be a display and hard keys, a desktop or mobile application or a Interface accessed through a web browser - a web UI.

A good kernel, daemons, device drivers and the web UI are all essential to making a highly usable, fast and secure. product.

Home

Dashboard

Seagate Business NAS interface

The dashboard presents critical information including a backup buton (to protect job manager), shortcuts to backup and reboot which are often not on the frontpage of other brands. i feels very dated and could do with a freshen up, some redundant info. Remnants to 'blackarmour' are still present.

Getting Started

Seagate Business NAS interface

The getting started check-list is a great and essential feature to guide a apprehensive or uncomfortable user to properly setup all the features of their nas in a clear and concise way, especially shares and security.

System

System Status

Device Name (BA-0371066), Serial Number, Firmware Version, Date/Time, Uptime, Temperature (39.50c/103.10F)/LAN 1 IP Address (DISCONNECTED)/ LAN 2 IP ADDRESS (Disconnected) Volume Name Usage % Volume Name RAID Type

Shortcuts for each Item to configure, LAN IP is broken in the firmware status as it displays fine in the header of the webpage and the LCD display

General Setup

Definable device name, device description, Optional HTTPS and NTP time services is supported

Advanced Settings

Define a SSL Certificate and private key or auto-generate one. The Volume encryption key for the data can also be reset here

Drive Diagnostics

They have gone to town on the SMART testing and seem to have 'copied' the smart short test from their famous Seatools diagnostic Both RAW smart data and a basic summary with bad LBA blocks and drive life is presented.

Seagate Business NAS interface

Power Settings

  • Connect a UPS and define a shutdown timeout.
  • Setup power management including suspend and uniquely, wake on lan. Wake on LAN is interesting
  • On/off HDD standby. In our experience this didn’t seem to work as the drives were still idling after many hours of no use *Schedule on/off prolongs the life of your NAS and HDDs by allowing a definable power on and off time configurable per day, to turn the NAS off after hours.

Firmware Update

  • Nicely, the Business NAS supports FULLY AUTOMATIC firmware updates !
  • Definable by install time (midnight) ,never update or ask when available
  • Manual update of the firmware image and as MD5 check file to verify the firmware binary is possible
  • Some NAS don’t allow for easy manual updates
  • 2013.60311 firmware, there was no never version

Administration

  • Define old/new/confirm password
  • Multiple email recipients for system notifications
  • Enable/disable recycle bin for the nas , a useful unique feature which will have much utility in a business environment
  • CPU temp 62.75c, Board temp 39.75c and Fan Speed 1077RPM
  • Manual shutdown/reboot

Network

LAN / IP Address

  • Define Networking on LAN port 1, Port 2 or Aggregation. Only "Round Robin LAN" and "Failover" are supported. SLA is not specifically defined here but Intel diagnostics show otherwise
  • Static or DHCP Setup
  • IP/netmask/gateway/auto or manual DNS/MTU
  • No specific jumbo frames Is available, however to enable jumbo frames change the value in the MTU field

IP Filters

White/Blacklist filtering of IP address who can access the NAS

Web Services

Seagate Business NAS interface

  • FTP AND anonymous access is off by default and SSL is supported for FTP
  • UPNP is disabled for the external web/FTP access by default
  • AFP is needed for Apple systems
  • Restriction of external port redirection to 8000-8999 may not suit some users but is sufficient

Workgroup

Select WORKGROUP or DOMAIN MEMBER for active directory

Dynamic DNS

Choose a preset dyndns service or a custom one with definable username and password

Printer Manager

  • Share a USB printer to your Network
  • Printer Model/State display
  • Job Status | Job ID, User, Size, State
  • Print spooler setting destination target

Storage

Disk Manager

Simply lists the ID, Volume, Size, Description(model number) and smart status of the installed HDDs. In our case, 4000GB each and 'ST4000DX0' which is a Barracuda XT and 'Good' SMART satus

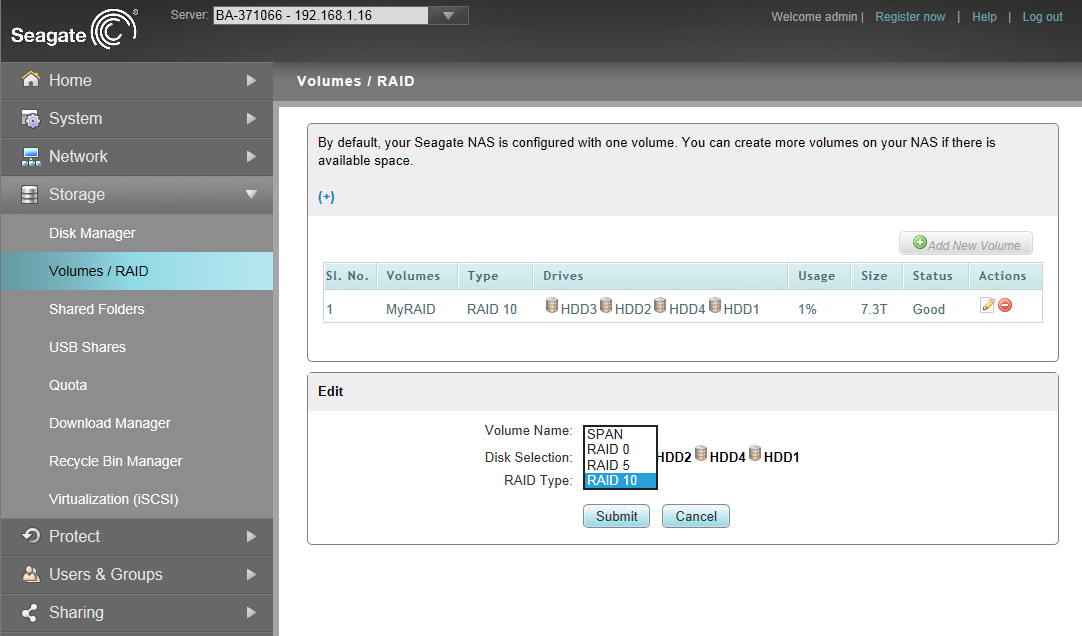

Volumes / RAID

Seagate Business NAS interface

  • Define one to many volumes of JBOD,RAID 0,1,5,10 and RAW. RAID 6 is not available as with higher spec NAS such as those from Thecus.
  • Many HDDs can have many volumes
  • RAID 5 out of the box

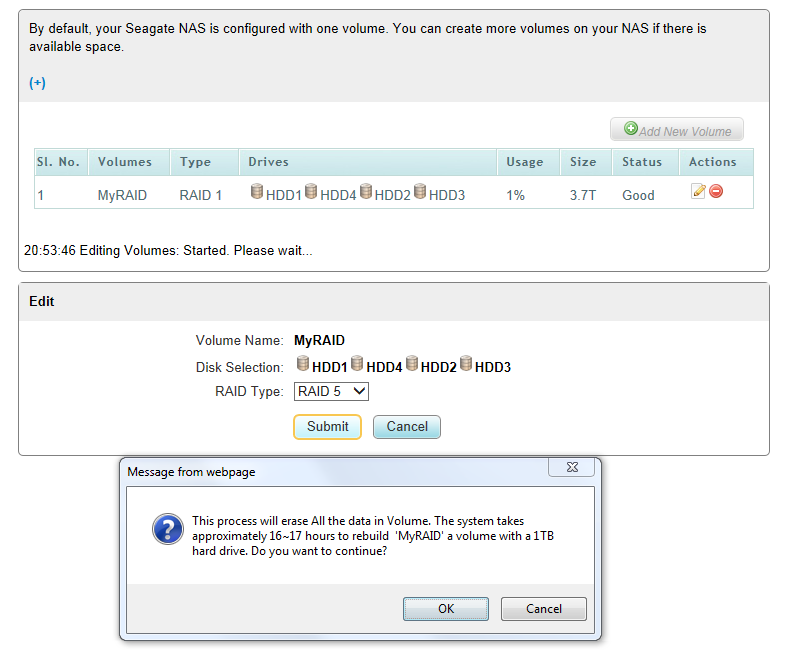

Seagate Business NAS RAID Rebuild

  • RAID building does no have a progress bar/display
  • Virtualization (iSCSI) requires a block-level (raw) volume.
  • Encryption must be enabled before creating a volume. A USB drive inserted in the Seagate NAS's USB port if you want to enable volume encryption. The security key is saved to the drive during the encryption process.

Shared Folders

Seagate Business NAS interface

The shared folders option page allows multiple shares to be added to a volume. One volume can have many shares. One share can have many services enabled. The usual set of common services re enabled. Samba is called CIFS here which may confuse some users. Encrypt isn't available as the volume must first haver encryption enabled. Which is a shame as restricts flexibility

USB Shares

  • USB drives are shared automatically, no mounting is required, eject is recommended.

  • USM disk is erroneously reported here along with an ID number, Size, Description (the USB case or device's branded name, in our case Backup Plus and serial number of the drive, smart status, format and eject

Seagate Business NAS interface Seagate Business NAS interface

The USM disk is erroneously reported here along with an ID number, Size, Description (the external case's internal drive Model number, in our case ST1000LM024 and serial number of the drive, smart status, format and eject

Quota

Set storage limits on any account or shared folder with definable options including gracetime

Download Manager

A simple task based download manager, that does not support torrents. URL, Username/password, Filename, Automatic download or scheduled download, By default 3 simultaneous downloads and maximum speed 100KB/s enabled. Proxy is also available

Recycle Bin Manager

  • Controls the size, filtering and searching of recycle bins setup for volume/shares. This does not enable/disable them, that was done earlier under System > Administration for global switch
  • Further more each share must have Recycle Bin specifically enabled
  • In the manager we can also set autodelete for the Recycle Bin (3 days)

Virtualization (iSCSI)

iSCSI on/off, Port Number (3260), iSNS enable/DISABLE, iSNS Server Address, iSCSI Target list

Protect

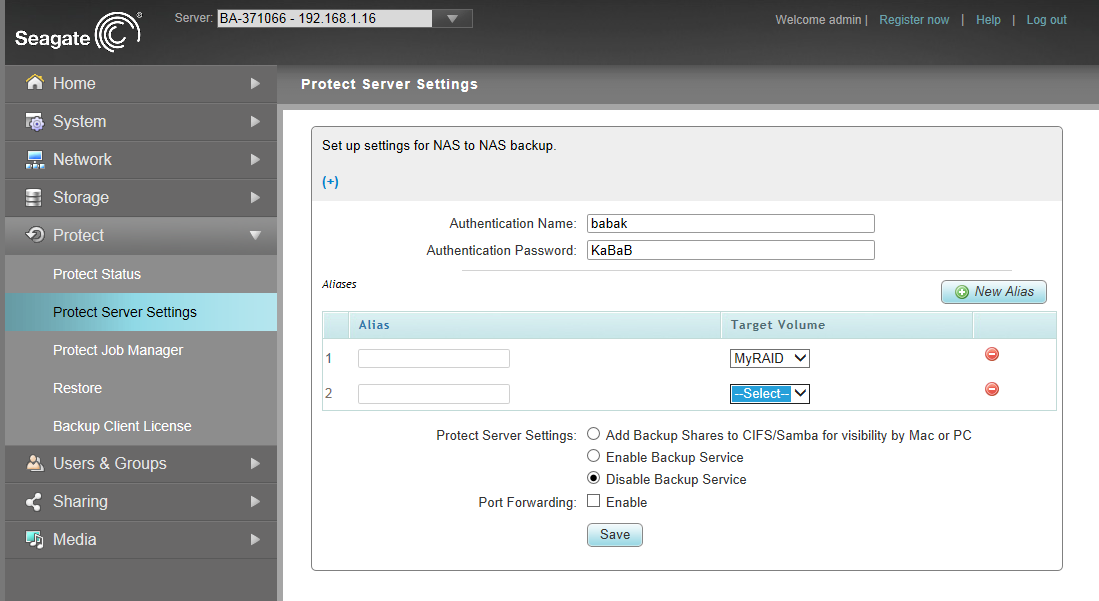

Protect Server Settings

Seagate Business NAS interface

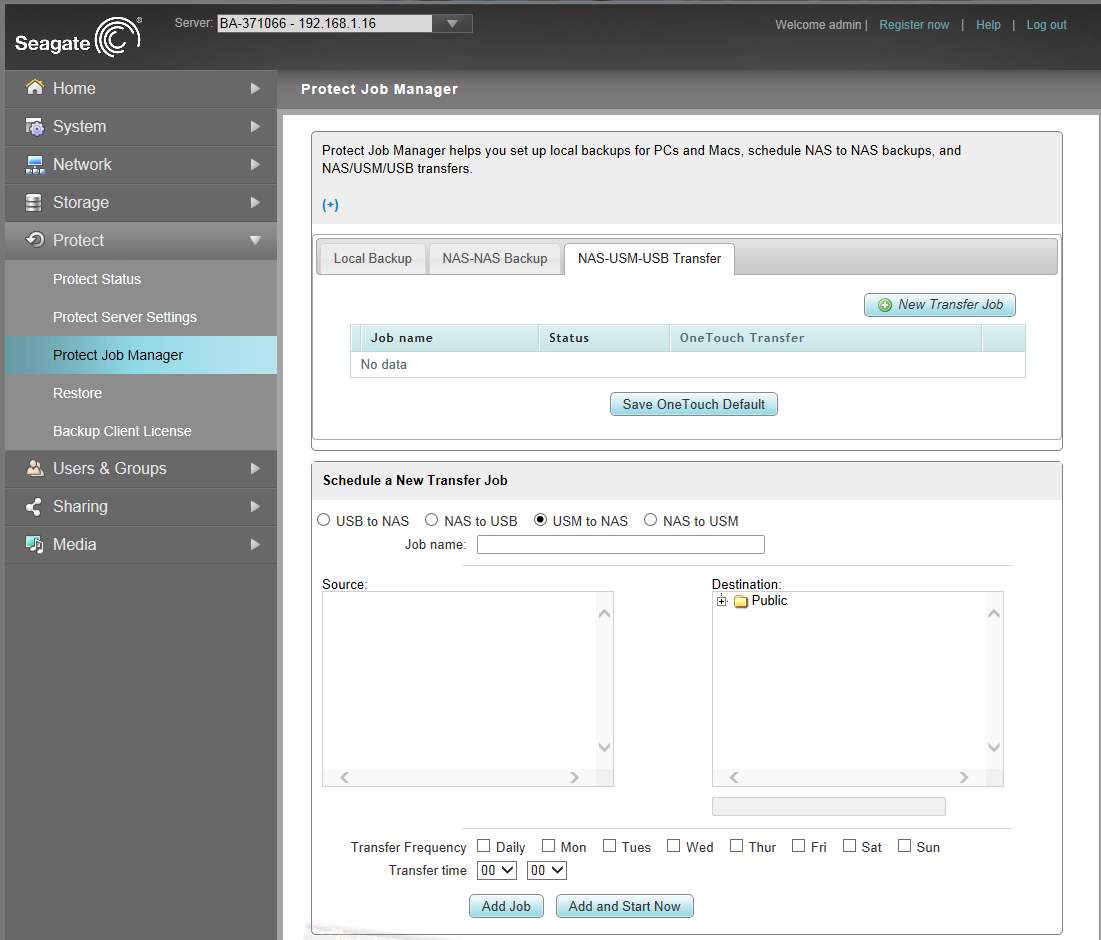

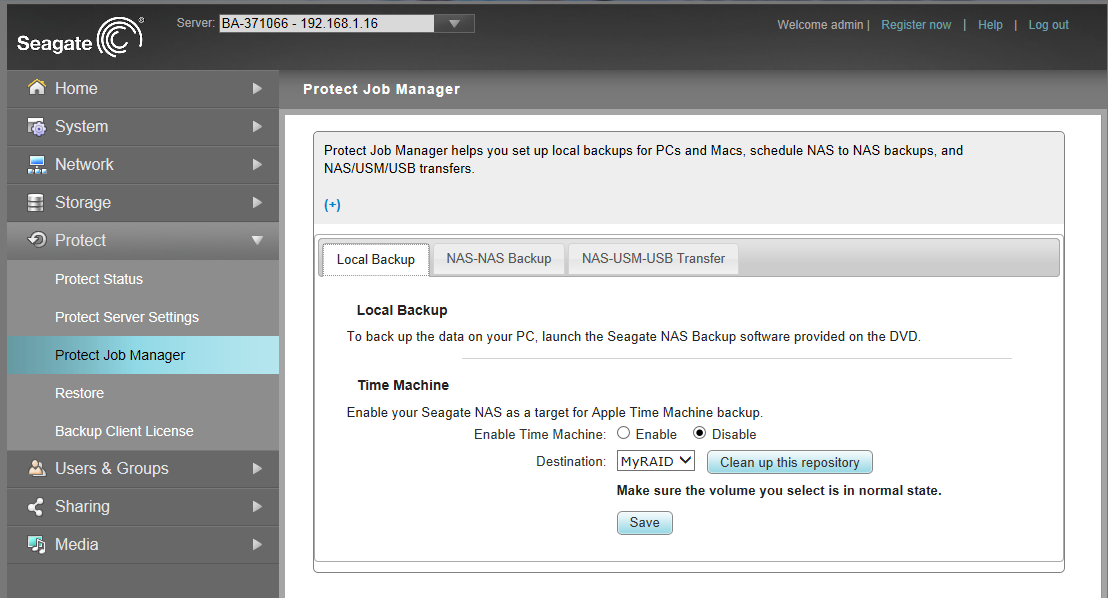

Protect Job Manager

Seagate Business NAS interface

  • For NAS to NAS backup,a permanent link is set between your Seagate NAS and another Seagate NAS on your network for continuous backup of the NAS, Source and Target.
  • NAS to NAS protect jobs must be username/password protected.

Seagate Business NAS interface

  • Transfers between all three storage interfaces are not restricted.

Restore

Seagate Business NAS interface

Backup Client License

Form to manage your Acronis license keys for the PC backup. 4bay has 10 licenses loaded into the device, 2 bay has 5. The status of each key and a facility to add more keys is available.

Users & Groups

Users/Groups

  • For a user, define a username, fullname, password and add/remove the user to a group
  • The user can be granted administrator rights. Certain pages in the Interface are clearly marked 'administrator only' This is to define roles backup users and standard users who have no rights to change settings.

Shared Folder Permissions

Define User and Group permissions for each shared folder

Sharing

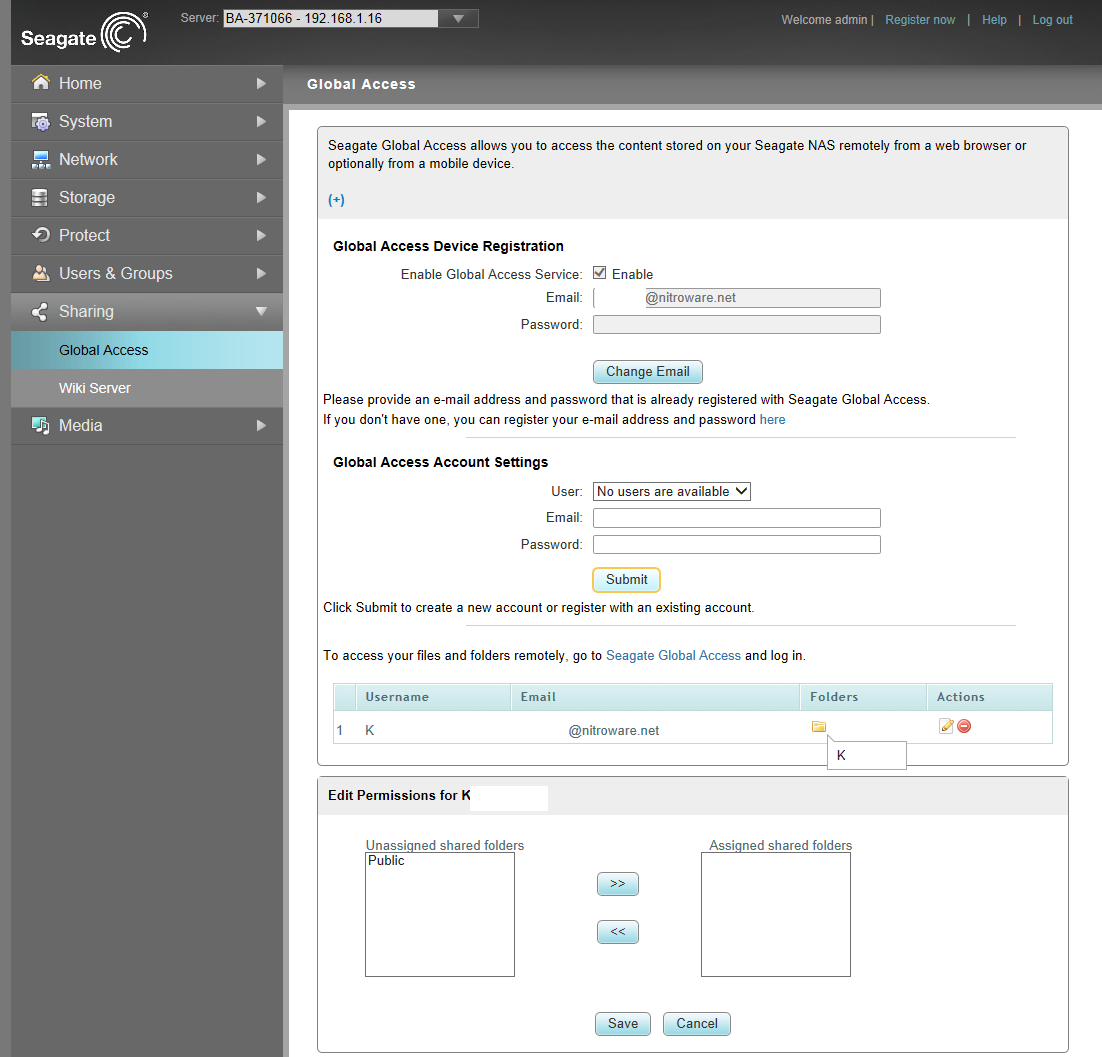

Global Access

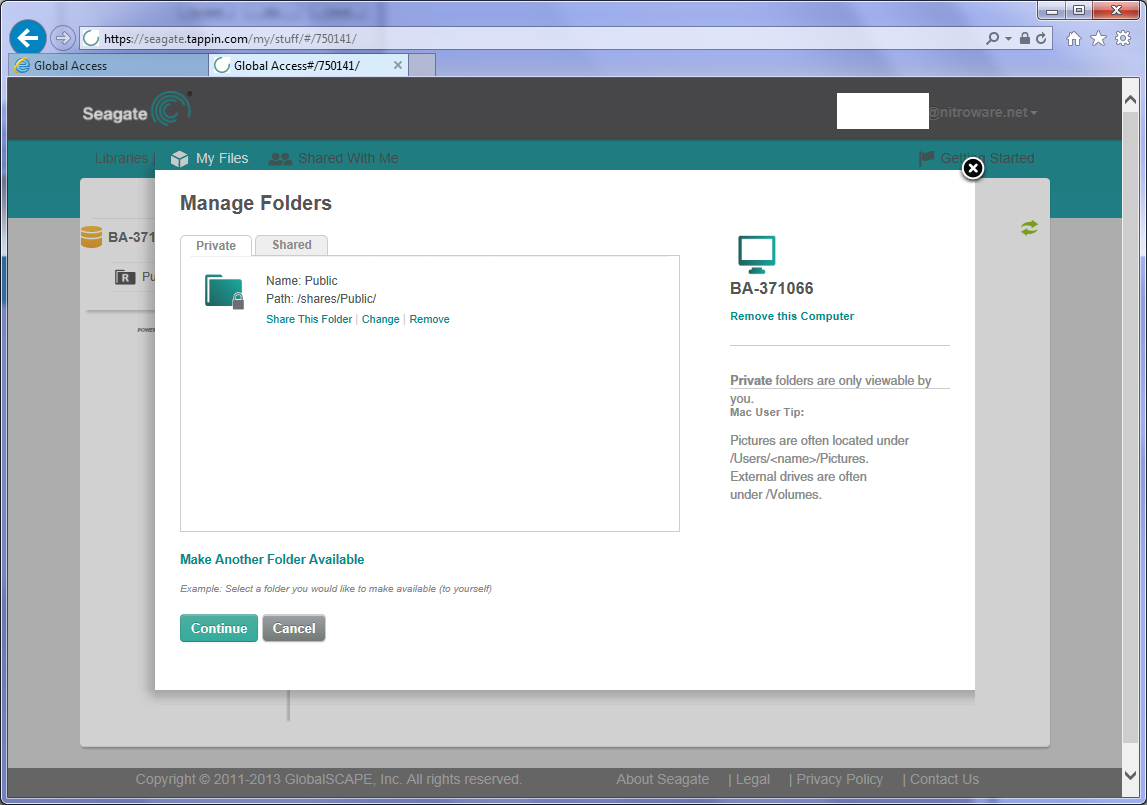

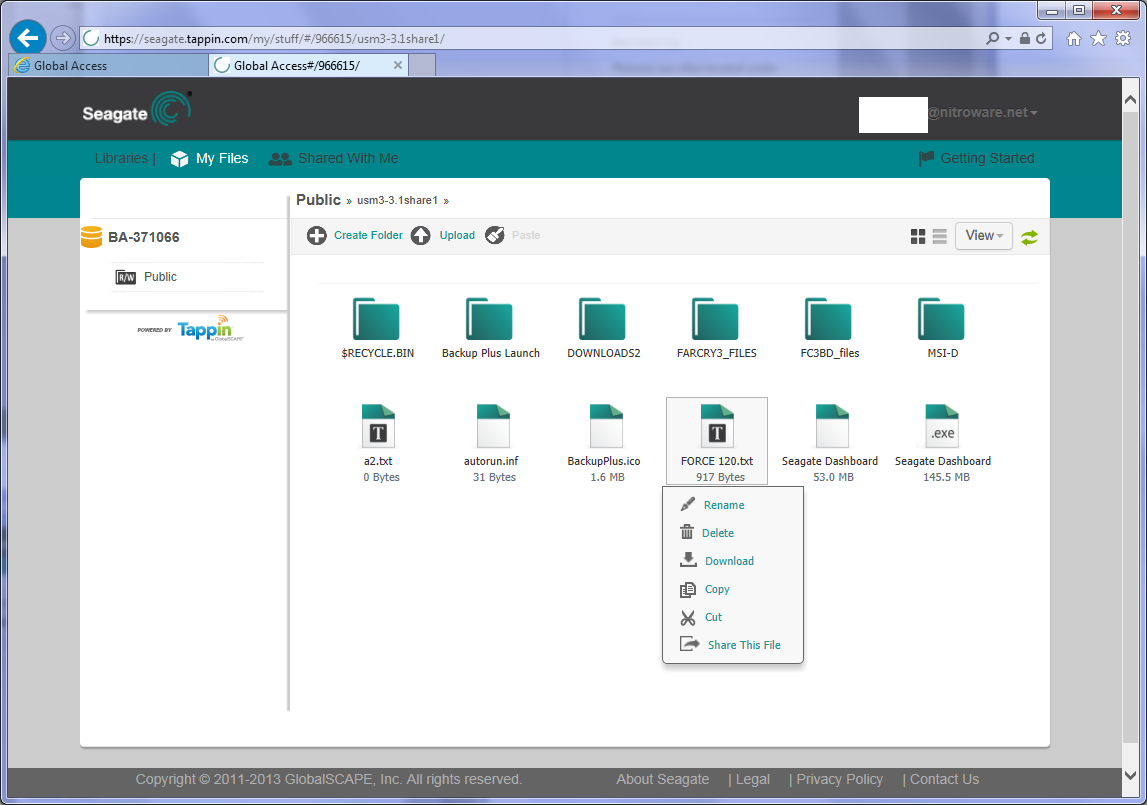

This is where the cloud magic happens for the Android, iOS or web remote access...

Seagate Business NAS interface

Seagate NAS Private Cloud Seagate NAS Private Cloud Seagate NAS Private Cloud

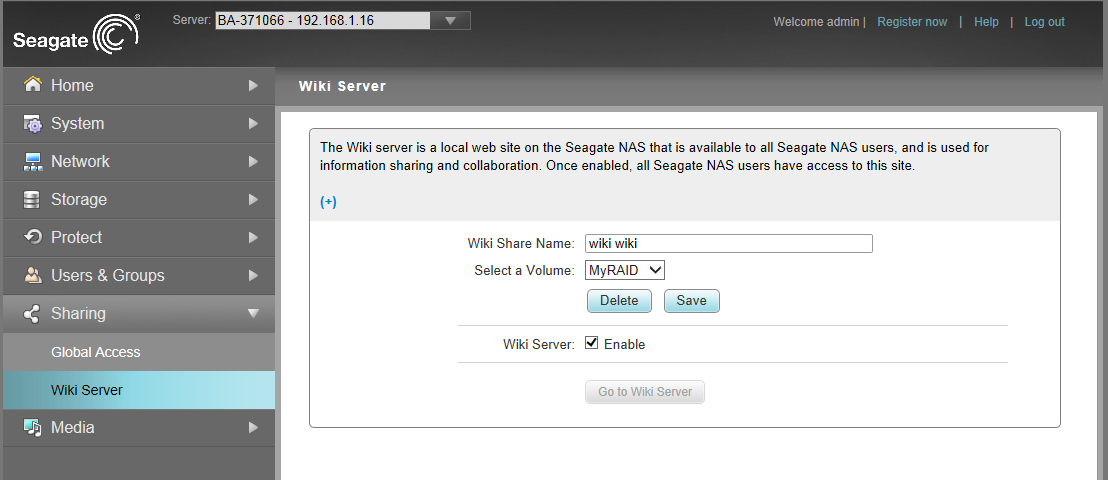

Wiki Server

Not all NAS have a wiki server. The intended use is for businesses who want to run an internal knowledge base , that is backed up, using free software (docuwiki) who may not be running Microsoft Sharepoint.

I would have liked to see some sample pages, a sample front page which contains the 'how to create and edit wiki pages'

Seagate Business NAS interface Seagate Business NAS interface

Media

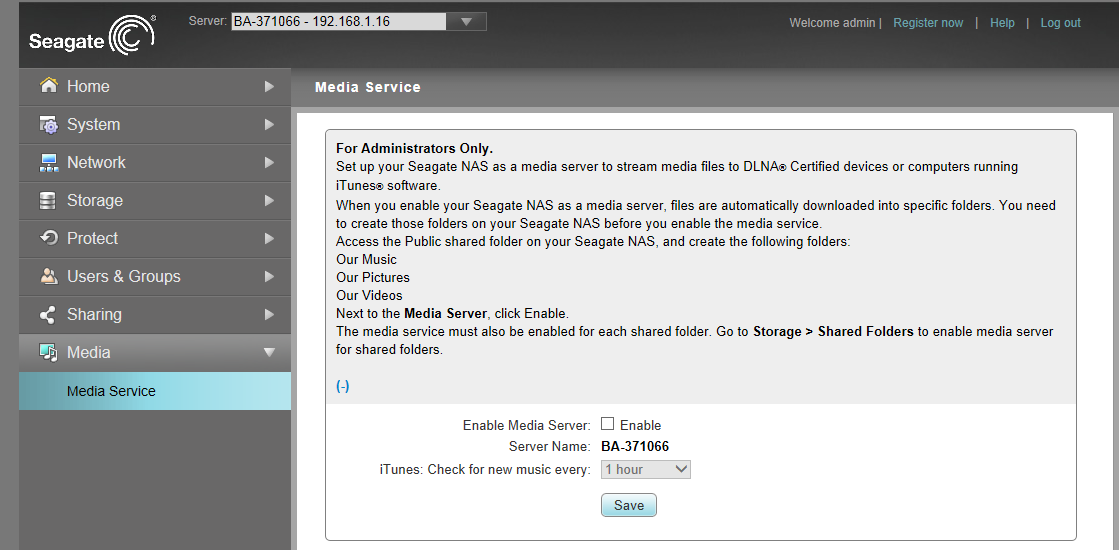

Media Service

We tested functionality with a Huawei G526 smartphone's built in DLNA client.

Seagate Business NAS interface
